OrdyxDisplay Installation
Install Ordyx Display
Version 1.1
To install a second display in Ordyx to show the orders, you will need to install OrdyxDisplay

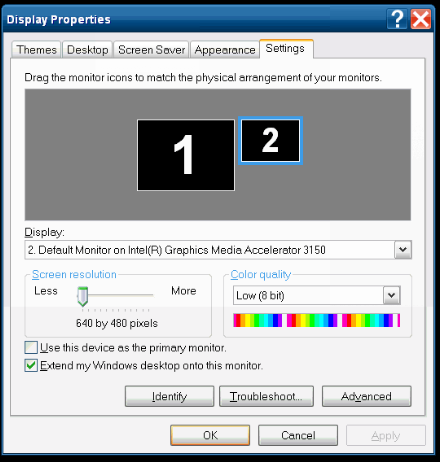

The first thing that we need to do is configure the second display as a Extend my Windows desktop on this monitor
Go to Display Properties and check that you have a second screen connected, after that, check the option mentioned above
Go to https://secure.ordyx.com/public/ , find ordyxDisplay/win-jre-OrdyxDisplay-1.5.exe and install it (remember that the version of the OrdyxDisplay may change)
You should see a blue icon like this on the desktop when the software is installed

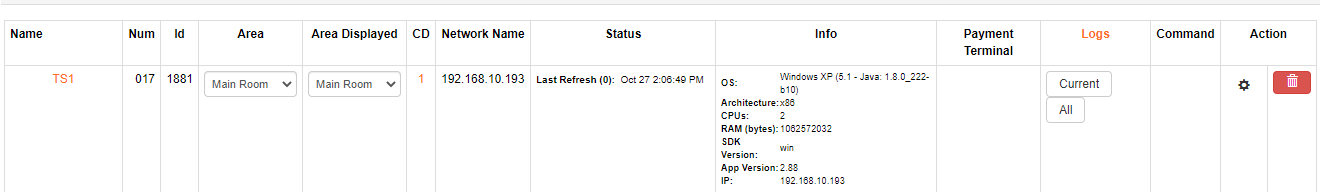

Now, go to Back Office, Setup/Terminals, and choose the terminal where you installed the screen, then go to Terminal Settings

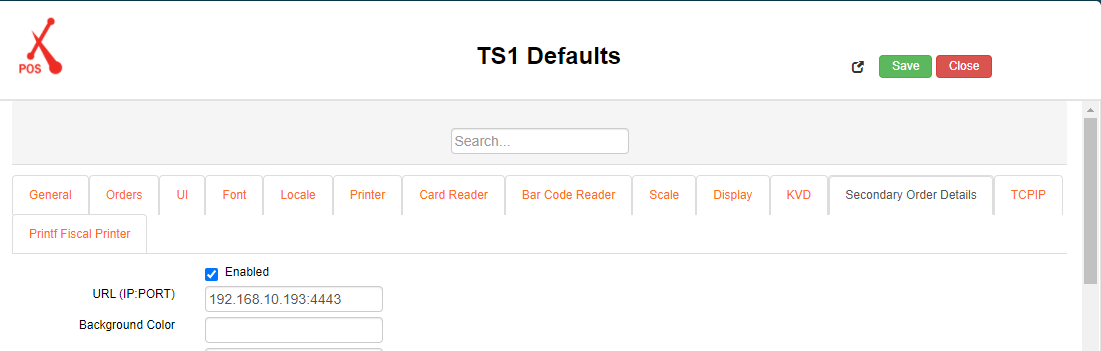

“Seconday Order Details Tab”, click on Enabled and put the IP + PORT

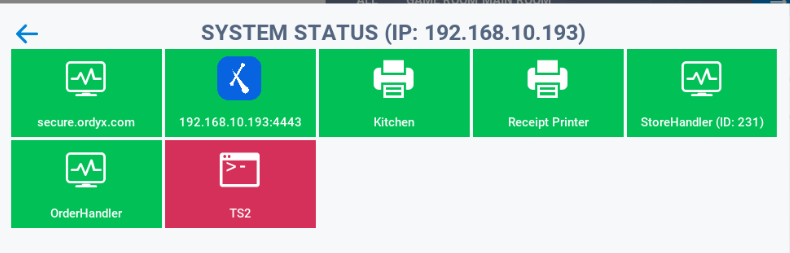

You can get this information from System Status, sometimes it can show the wrong IP, so you can change it from here, the IP should be the same of the Terminal
