PAX E800 OrdyxDisplay Installation

PAX E800 OrdyxDisplay Installation








Install Ordyx Display

Version 1.1


For Pax E800 terminals, follow these steps:

Go to PAX Store and search for OrdyxDisplay, once you find the app, install it.

Then when you open the app you will see a Black Screen display showing the IP.

Now open the Back Office and go to Setup>Terminals

Choose the terminal that you need to add OrdyxDisplay and under action go to Settings



Open Secondary Order Details tab>Enter the IP in URL (IP: PORT),  click on Enable

Minimize the black screen on the user side using the middle home button. Open Ordyx One> Health>Ordyx Display should be green. Place an order, customer screen will display correctly.

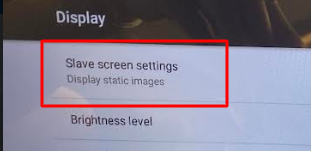

Settings on E800: Settings>Enter the password (9876 or @@pax9876)Display>Slave screen settings>Options are: Display static image and No> Choose NO.
