PAX Error Transaction

PAX Error Transaction



PAX Error Transaction Messages

Version 1.1



Processing with PAX

The Desktop App is simply acting as the POS System so the terminal knows what to do (i.e. Transaction Type & Amount) and can receive the response back from PAX to update Gateway Reporting.

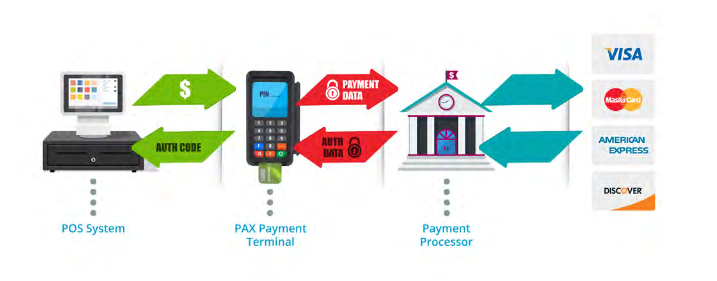

Once the system needs to complete a payment, the POS system sends the amount and an order number to the PAX device.

The PAX device handles the full payment to the processor, not sharing any card holder data back to the POS system.

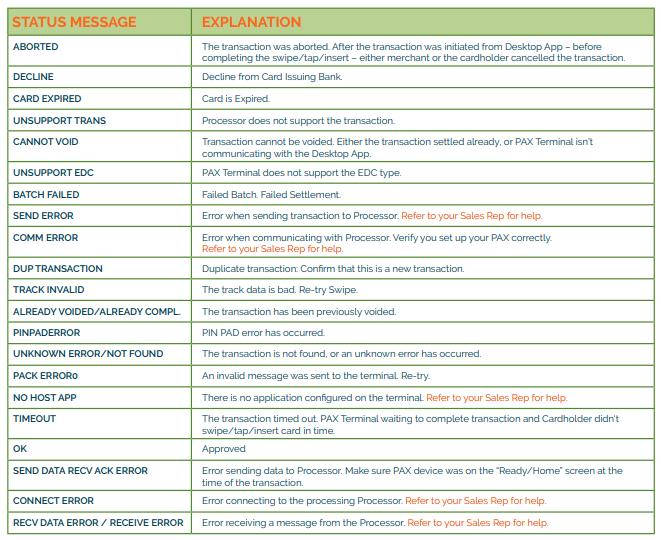

Transaction Status Messages

The Status Message received back from the PAX Terminal during a transaction attempt can help identify if a transaction was successful or unsuccessful.

If unsuccessful, it is important to understand the explanation behind the status message in next steps for troubleshooting.




In case that we receive the error POSLINK TRANSACTION ERROR: SEND DATA RECV ACK ERROR: Can be if you have pushed buttons on the PAX or are in the menu of the PAX when trying to run a sale. To know the PAX is ready, make sure the PAX Logo is on the screen at the start of a sale indicating the PAX is ready to process
